CCSN 3322KW/4153KVA diesel generator set High power main and standby diesel generator sets for industrial mining power p

Name: CCSN 3322KW/4153KVA diesel generator set High power main and standby diesel generator sets for industrial mining power p
Brand: CCSN
SKU: CPG3079F2
Price: 36.00 USD
Availability: InStock
Rating: 4.9 (128 reviews)

Brand Name:	CCSN
Model Number:	CPG3079F2
MOQ:	1 set
Price:	US$36.00 per set
Packaging Details:	Export package
Payment Terms:	L/C, T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

QS CHINA

Power Output:

3000KW

Standby Power:

3300KW

Output Voltage:

6.3/10.5 KV

Frequency:

50Hz

Rated Speed:

1000 RPM

Supply Ability:

1000 sets per year

Product Description

CCSN 3322KW/4153KVA diesel generator set High power main and standby diesel generator sets for industrial mining power plants

Brand introduction: CCSN 3322KW/4153KVA diesel generator set High power main and standby diesel generator sets for industrial mining power p 0

CCSN ENGINE INC. Securities code listed on Tianfu Equity Exchange: 811129

CCSN ENGINE INC. was founded in the 1960s. It is a strategic partner of CRRC Group. The world's first fat engine. China's ecological engine leader. The parent company CCSN POWER INC. has invested 31 million yuan to independently develop, design, and produce engines, generator sets and power products, and provides services such as "micro-smart grid" and other power solutions, energy investment and power leasing, and distributed power station design, consulting and construction. . Investing 20 million yuan to build the CCSN ENGINE production base, the Phase I and II projects cover an area of 10,000 square meters.

CCSN takes "green development, harmony and win-win" as its corporate philosophy and "integrity, harmony, pragmatism and innovation" as its corporate spirit. Launched a series of products with independent intellectual property rights, and has obtained 16 patents. The main products independently developed, designed and produced include diesel engines, fat engines, natural gas engines, methanol engines and hybrid engines. CCSN's medium and high-speed engine technology is at the international leading level. CCSN is committed to building a complete supply chain for the power generation industry and laying a solid foundation for project programmatic services. Provide better products and services at lower costs.

At present, CCSN's equipment is sold throughout the country in railways, metallurgy, mining, power stations, ships, security power supply construction and other fields. Its overseas sales areas cover East Asia, Central Asia, Southeast Asia, South Asia, West Asia and the Middle East, Africa, South America and other regions.

CCSN mainly produces various series of diesel, fat, gas, heavy oil, dual fuel, and solar thermal engines with cylinder diameters of 159, 210, 240, 280, and 320. This series of engines are used as diesel power configurations for China's main railway diesel locomotives, rail transit, domestic ship power, large engineering machinery, large engine water pumps, large engine fire pumps, etc. So far, nearly 10,000 diesel engines have been used. Annual sales exceed 100 million yuan.

CCSN has currently passed the certification systems: ISO/TSX16949:2002 quality management system certification, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety system certification, and LL-C system certification.

CCSN 3322KW/4153KVA diesel generator set High power main and standby diesel generator sets for industrial mining power p 1

Products Features:
CCSN generator set has the advantages of good economy, energy saving, stable and reliable operation, simple structure, simple maintenance, convenient operation, large power increase, low energy consumption, strong adaptability, low parallel power loss, powerful protection function, remote intelligent control and other advantages. It is widely praised by all kinds of customers.

CCSN provides complete sets of power solutions and supports customized production. The products can realize intelligent control and remote monitoring, and provide multiple optional solutions to provide customers with comprehensive services.

CCSN 3322KW/4153KVA diesel generator set High power main and standby diesel generator sets for industrial mining power plants:

Product parameters:

CPG3322F2 Generator Set

01.	Manufacturer	-	CCSN
02.	Reserve power	kw	3654
03.	Normal power	kw	3322
04.	Continuous power	kw	2989
05.	Power Factor	-	0.8 hysteresis
06.	Output voltage	kV	6. 3 / 1 0 .5
07.	Rated frequency	Hz	50
08.	Rated speed	min ^-1	1000
09.	Fuel grade	-	Ordinary light diesel GB252/ASTM D975, 1-D/2-D
10.	Cooling method	-	Heat exchanger + cooling tower/cooling water tank
11.	Frequency drop	%	≤3
12.	Steady-state frequency band	%	≤0.5
13.	Relative frequency setting drop range	%	>(2.5+frequency drop)
14.	Relative frequency setting rising range	%	＞2.5
15.	Transient frequency deviation (from the initial frequency)
	- 100% sudden power reduction	%	≤+10
	- Sudden power increase	%	≤-(7+frequency drop)
16.	Transient frequency deviation (from rated frequency)
	- 100% sudden power reduction	%	≤+10
	- Sudden power increase	%	≤-7
17.	Frequency recovery time	s	≤3
18 .	Relative frequency tolerance band	%	2
19.	Steady-state voltage deviation	%	≤±1.5
20.	Voltage unbalance	%	1
21.	Relative voltage setting range	%	≤±5
22.	Voltage setting change rate	%/s	0.2~1.0
23.	Transient voltage deviation
	- 100% sudden power reduction	%	≤+20
	- Sudden power increase	%	≤-15
24.	Voltage distortion rate	%	＜5
25.	Voltage recovery time (±3%)	s	≤2
26.	Voltage modulation	%	0.3
27.	Active power distribution
	- Between 80% and 100% of nominal rating	%	≤+5
	- Between 20% and 80% of the nominal value	%	≤+10
28.	Reactive power distribution
	- Between 20% and 100% of nominal rating	%	≤+10
	…

NY16V280-G208 engine

01.	Manufacturer	-	CRRC
02.	Output power (closed)	kWm	4088	5478 BHP

03.	Type	-	16 cylinders-V type 50°/four stroke/water cooling
04.	Cylinder bore*stroke	mm	280*285
05.	Displacement	L	280.8
06.	Rated speed	min ^-1	1000
07.	Minimum idling speed	min ^-1	400
08.	Maximum allowable speed	min ^-1	1100
09.	Average piston speed	m/s	9.5
10.	Mean effective pressure	MPa	1. 65
11.	Maximum fuel pressure	MPa	≤14
12.	Compression ratio	-	12.5:1
13.	Crankshaft direction (facing the output end)	-	Clockwise
14.	Reference size	mm	4971 (L) * 1725 (W) * 2895 (H)
15.	Reference weight	kg	24500
16.	Speed regulation mode	-	Digital
17.	Speed adjustment range	%	±5
18.	Vibration Isolators	pcs	16
19.	Noise level, full load	dBA	110(distance 1m)

20.	Air intake and cooling	-	Turbocharger, W/A supercharger and intercooler
21.	Air filter	-	Standard
22.	Allowable exhaust back pressure	kPa	3
23	Allowable exhaust negative pressure	kPa	2.5

24.	Number of turbochargers	nos.	2
25.	Combustion air volume	kg/s	7.8
26.	Standard air - fuel ratio	-	33.3

27.	Lubrication method, before starting	-	Pre-supply oil pump
28.	Lubrication method, running	-	Engine driven pump
29 .	Oil pan capacity	L	1200
30.	Oil pan size	mm	3030 * 1078 *3 4 0
31.	Lubricant consumption rate	g/kw·h	2.04
32.	Lubricant Specifications	-	SAE #15W-40
33.	Recommended specifications	-	API/CH/CI/CF or above

34.	Precision, oil filter	μm	≤20
35.	Flow, oil filter	m3 ^/h	≤100
36.	Pressure, oil filter	MPa	≤0.04
37.	Double-pack, one for use and one for backup	-	Optional

38.	Cooling method	-	Radiator/Cooling Tower
39.	Lubricating oil cooling	-	Centrifugal pump circulation
40.	Cooling water	-	Deionized water
41.	High temperature water outlet pressure	Bar	3.5
42.	Intercooler water outlet pressure	Bar	3.5
43.	Oil pump outlet pressure	Bar	9
44.	High temperature water outlet maximum water temperature	℃	88
45.	Intercooler water outlet maximum water temperature	℃	88
46.	Intercooling water inlet temperature	℃	60
47.	Maximum lubricating oil temperature	℃	88
48.	High temperature water flow	m3 ^/h	105
49.	Intercooling water flow	m3 ^/h	105
50.	Oil pump flow	m3 ^/h	105
	Cold start minimum ambient temperature	℃	10

51.	Fuel consumption rate	g/kw·h	198 +5%
52.	Fuel grade	-	0# Diesel
53.	Fuel filter quality, first class	μm	≤20
54.	Fuel filter rating, secondary	μm	≤12
55.	Operating temperature	℃	≤90
56.	Double-pack, one for use and one for backup	-	Optional

57.	Pre-supply oil pump , power	kW	5.5
58.	Operating voltage	VAC	380
59.	frequency	Hz	50
60.	pressure	MPa	0.6
61.	flow	m3 ^/h	12.61

62.	Pre-supply fuel pump, power	kW	2.2
63.	Operating voltage	VAC	380
64.	frequency	Hz	50
65.	pressure	MPa	1.45
66.	flow	m3 ^/h	2

67.	Startup method
67.1	Air start	-	Air compressor, gas tank	Choose one
67.2	Battery start	-	Battery	Choose one
	…

Alternator

01.	Model	-	TFW33223
02.	Motor structure	-	Double bearing, self-ventilating
03.	Rated speed	min ^-1	1000
04.	Limiting speed	min ^-1	1200
05.	Rated frequency	Hz	50
06.	Normal power	k	3322
07.	Rated voltage	kV	6. 3 / 1 0 .5
08.	Rated current	A	380/228
09.	Excitation method	-	Brushless self-excitation
10.	Voltage regulation method	-	AVR
11.	Protection level	-	IP23
12.	series	-	6
13.	Insulation class	-	H/H
14.	Winding temperature rise	-	≤105K, resistance method
15.	Winding connection	-	3P4W, star type 12 lines
16.	Winding pitch	-	2/3
17.	Continuous short circuit current	-	300% Ie 2 sec
18.	Telephone harmonic factor	-	THF<2%
19.	Radio interference suppression	-	TIF<50
20.	Short circuit ratio	Kcc	0.764
21.	Direct axis synchronous reactance	XD	1.677
22.	Horizontal axis synchronous reactance	Xq	0.855
23.	Direct axis transient reactance	X'd	0.199
24.	Transient reactance	X'q	0.855
25.	Direct axis super transient reactance	X''d	0.137
26.	Transverse axis super transient reactance	X''q	0.148
27.	Stator winding time constant	Ta(s)	0.079
28.	Field winding time constant	Td0(s)	3.837
29.	efficiency	%	96.5
30.	Cooling air maximum temperature	℃	40
31.	Steady-state voltage adjustment range	%	±2.5
32.	Transient voltage deviation when load increases	%	-15
33.	Voltage recovery time	s	≤1.5
34.	Steady-state voltage deviation	%	±1%
35.	Transient voltage deviation when load is reduced	%	+20%
36.	Temperature rise level	-	F
37.	Reference implementation standards, North America	-	NEMA MG21/CSA C22-2
38.	Reference implementation standards, China	-	GB755
39.	Refer to the implementation standards, EU	-	IEC60034-1/DIN VDE 0530
40.	Number of terminals	mm	6
41.	Reference size	mm	258521102150
42.	Reference weight	Kg	12000
43.	Moment of Inertia	kg ･ m ²	481
	…

Tags:

Electric Power Generator

Power Supply Generator

Generating Station Set

Products Details

Home > Products >

Industrial Generator Set

CCSN 3322KW/4153KVA diesel generator set High power main and standby diesel generator sets for industrial mining power p

All Category

Industrial Generator Set

<10KW

10-30KW

30-100KW

100-200KW

200-500KW

500-1000KW

1000-2000KW

2000-3500KW

>3500KW

Silent Generator Set

Rain Proof Generator

Container Generator Set

Trailer Generator Set

Portable Power Station Generator

Open Frame Generator

Fully Automatic Generator

Diesel Generator Set

Gasoline Generator Set

Gas Generator Sets

Parallel Generator Set

Industrial Diesel Engine

High Output Alternator

Components And Accessories

Generator Repair Parts

Ancillary Facilities

Electrical System

Monitoring system

Power Station Related

Power Transmission

Power Transformation

Power Distribution

New Energy Power Generation

Solar Power Generation

Wind Power Generation

Hydropower Generation

Peripheral Products

Household Generator

CCSN 3322KW/4153KVA diesel generator set High power main and standby diesel generator sets for industrial mining power p

Brand Name:	CCSN
Model Number:	CPG3079F2
MOQ:	1 set
Price:	US$36.00 per set
Packaging Details:	Export package
Payment Terms:	L/C, T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Brand Name:

CCSN

Certification:

QS CHINA

Model Number:

CPG3079F2

Power Output:

3000KW

Standby Power:

3300KW

Output Voltage:

6.3/10.5 KV

Frequency:

50Hz

Rated Speed:

1000 RPM

Minimum Order Quantity:

1 set

Price:

US$36.00 per set

Packaging Details:

Export package

Delivery Time:

90 days

Payment Terms:

L/C, T/T,

Supply Ability:

1000 sets per year

Product Description

CCSN 3322KW/4153KVA diesel generator set High power main and standby diesel generator sets for industrial mining power plants

Brand introduction: CCSN 3322KW/4153KVA diesel generator set High power main and standby diesel generator sets for industrial mining power p 0

CCSN ENGINE INC. Securities code listed on Tianfu Equity Exchange: 811129

CCSN 3322KW/4153KVA diesel generator set High power main and standby diesel generator sets for industrial mining power p 1

CCSN 3322KW/4153KVA diesel generator set High power main and standby diesel generator sets for industrial mining power plants:

Product parameters:

CPG3322F2 Generator Set

01.	Manufacturer	-	CCSN
02.	Reserve power	kw	3654
03.	Normal power	kw	3322
04.	Continuous power	kw	2989
05.	Power Factor	-	0.8 hysteresis
06.	Output voltage	kV	6. 3 / 1 0 .5
07.	Rated frequency	Hz	50
08.	Rated speed	min ^-1	1000
09.	Fuel grade	-	Ordinary light diesel GB252/ASTM D975, 1-D/2-D
10.	Cooling method	-	Heat exchanger + cooling tower/cooling water tank
11.	Frequency drop	%	≤3
12.	Steady-state frequency band	%	≤0.5
13.	Relative frequency setting drop range	%	>(2.5+frequency drop)
14.	Relative frequency setting rising range	%	＞2.5
15.	Transient frequency deviation (from the initial frequency)
	- 100% sudden power reduction	%	≤+10
	- Sudden power increase	%	≤-(7+frequency drop)
16.	Transient frequency deviation (from rated frequency)
	- 100% sudden power reduction	%	≤+10
	- Sudden power increase	%	≤-7
17.	Frequency recovery time	s	≤3
18 .	Relative frequency tolerance band	%	2
19.	Steady-state voltage deviation	%	≤±1.5
20.	Voltage unbalance	%	1
21.	Relative voltage setting range	%	≤±5
22.	Voltage setting change rate	%/s	0.2~1.0
23.	Transient voltage deviation
	- 100% sudden power reduction	%	≤+20
	- Sudden power increase	%	≤-15
24.	Voltage distortion rate	%	＜5
25.	Voltage recovery time (±3%)	s	≤2
26.	Voltage modulation	%	0.3
27.	Active power distribution
	- Between 80% and 100% of nominal rating	%	≤+5
	- Between 20% and 80% of the nominal value	%	≤+10
28.	Reactive power distribution
	- Between 20% and 100% of nominal rating	%	≤+10
	…

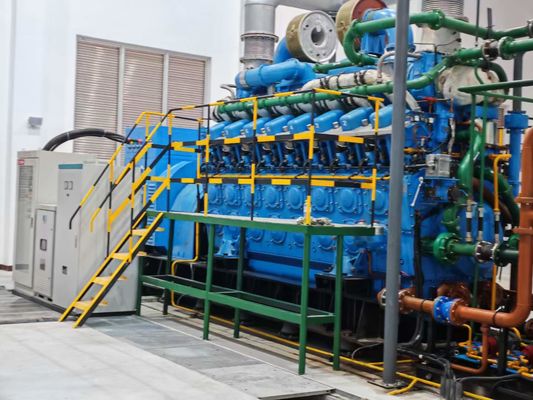

NY16V280-G208 engine

01.	Manufacturer	-	CRRC
02.	Output power (closed)	kWm	4088	5478 BHP

03.	Type	-	16 cylinders-V type 50°/four stroke/water cooling
04.	Cylinder bore*stroke	mm	280*285
05.	Displacement	L	280.8
06.	Rated speed	min ^-1	1000
07.	Minimum idling speed	min ^-1	400
08.	Maximum allowable speed	min ^-1	1100
09.	Average piston speed	m/s	9.5
10.	Mean effective pressure	MPa	1. 65
11.	Maximum fuel pressure	MPa	≤14
12.	Compression ratio	-	12.5:1
13.	Crankshaft direction (facing the output end)	-	Clockwise
14.	Reference size	mm	4971 (L) * 1725 (W) * 2895 (H)
15.	Reference weight	kg	24500
16.	Speed regulation mode	-	Digital
17.	Speed adjustment range	%	±5
18.	Vibration Isolators	pcs	16
19.	Noise level, full load	dBA	110(distance 1m)

20.	Air intake and cooling	-	Turbocharger, W/A supercharger and intercooler
21.	Air filter	-	Standard
22.	Allowable exhaust back pressure	kPa	3
23	Allowable exhaust negative pressure	kPa	2.5

24.	Number of turbochargers	nos.	2
25.	Combustion air volume	kg/s	7.8
26.	Standard air - fuel ratio	-	33.3

27.	Lubrication method, before starting	-	Pre-supply oil pump
28.	Lubrication method, running	-	Engine driven pump
29 .	Oil pan capacity	L	1200
30.	Oil pan size	mm	3030 * 1078 *3 4 0
31.	Lubricant consumption rate	g/kw·h	2.04
32.	Lubricant Specifications	-	SAE #15W-40
33.	Recommended specifications	-	API/CH/CI/CF or above

34.	Precision, oil filter	μm	≤20
35.	Flow, oil filter	m3 ^/h	≤100
36.	Pressure, oil filter	MPa	≤0.04
37.	Double-pack, one for use and one for backup	-	Optional

38.	Cooling method	-	Radiator/Cooling Tower
39.	Lubricating oil cooling	-	Centrifugal pump circulation
40.	Cooling water	-	Deionized water
41.	High temperature water outlet pressure	Bar	3.5
42.	Intercooler water outlet pressure	Bar	3.5
43.	Oil pump outlet pressure	Bar	9
44.	High temperature water outlet maximum water temperature	℃	88
45.	Intercooler water outlet maximum water temperature	℃	88
46.	Intercooling water inlet temperature	℃	60
47.	Maximum lubricating oil temperature	℃	88
48.	High temperature water flow	m3 ^/h	105
49.	Intercooling water flow	m3 ^/h	105
50.	Oil pump flow	m3 ^/h	105
	Cold start minimum ambient temperature	℃	10

51.	Fuel consumption rate	g/kw·h	198 +5%
52.	Fuel grade	-	0# Diesel
53.	Fuel filter quality, first class	μm	≤20
54.	Fuel filter rating, secondary	μm	≤12
55.	Operating temperature	℃	≤90
56.	Double-pack, one for use and one for backup	-	Optional

57.	Pre-supply oil pump , power	kW	5.5
58.	Operating voltage	VAC	380
59.	frequency	Hz	50
60.	pressure	MPa	0.6
61.	flow	m3 ^/h	12.61

62.	Pre-supply fuel pump, power	kW	2.2
63.	Operating voltage	VAC	380
64.	frequency	Hz	50
65.	pressure	MPa	1.45
66.	flow	m3 ^/h	2

67.	Startup method
67.1	Air start	-	Air compressor, gas tank	Choose one
67.2	Battery start	-	Battery	Choose one
	…

Alternator

01.	Model	-	TFW33223
02.	Motor structure	-	Double bearing, self-ventilating
03.	Rated speed	min ^-1	1000
04.	Limiting speed	min ^-1	1200
05.	Rated frequency	Hz	50
06.	Normal power	k	3322
07.	Rated voltage	kV	6. 3 / 1 0 .5
08.	Rated current	A	380/228
09.	Excitation method	-	Brushless self-excitation
10.	Voltage regulation method	-	AVR
11.	Protection level	-	IP23
12.	series	-	6
13.	Insulation class	-	H/H
14.	Winding temperature rise	-	≤105K, resistance method
15.	Winding connection	-	3P4W, star type 12 lines
16.	Winding pitch	-	2/3
17.	Continuous short circuit current	-	300% Ie 2 sec
18.	Telephone harmonic factor	-	THF<2%
19.	Radio interference suppression	-	TIF<50
20.	Short circuit ratio	Kcc	0.764
21.	Direct axis synchronous reactance	XD	1.677
22.	Horizontal axis synchronous reactance	Xq	0.855
23.	Direct axis transient reactance	X'd	0.199
24.	Transient reactance	X'q	0.855
25.	Direct axis super transient reactance	X''d	0.137
26.	Transverse axis super transient reactance	X''q	0.148
27.	Stator winding time constant	Ta(s)	0.079
28.	Field winding time constant	Td0(s)	3.837
29.	efficiency	%	96.5
30.	Cooling air maximum temperature	℃	40
31.	Steady-state voltage adjustment range	%	±2.5
32.	Transient voltage deviation when load increases	%	-15
33.	Voltage recovery time	s	≤1.5
34.	Steady-state voltage deviation	%	±1%
35.	Transient voltage deviation when load is reduced	%	+20%
36.	Temperature rise level	-	F
37.	Reference implementation standards, North America	-	NEMA MG21/CSA C22-2
38.	Reference implementation standards, China	-	GB755
39.	Refer to the implementation standards, EU	-	IEC60034-1/DIN VDE 0530
40.	Number of terminals	mm	6
41.	Reference size	mm	258521102150
42.	Reference weight	Kg	12000
43.	Moment of Inertia	kg ･ m ²	481
	…

Tags:
